TDA1562Q

high efficiency power amplifier, ZIP17, 18 V, 8A, 60 W

Rated 5 Rating 5 | reviews | Write a review

Price:: US $10.00~12.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $10.00~12.00

PartNumber:: TDA1562Q

Brand:: NXP Semiconductors - nxp | Pack: ZIP | D/C: 08+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Allen's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-09-13

From Other Seller

Part Number:TDA1562Q
US $10.00 - 12.00
ECA1HHG220

US $2.00 - 10.00 / Piece
(0) Remove
HT46R47

US $0.35 - 1.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

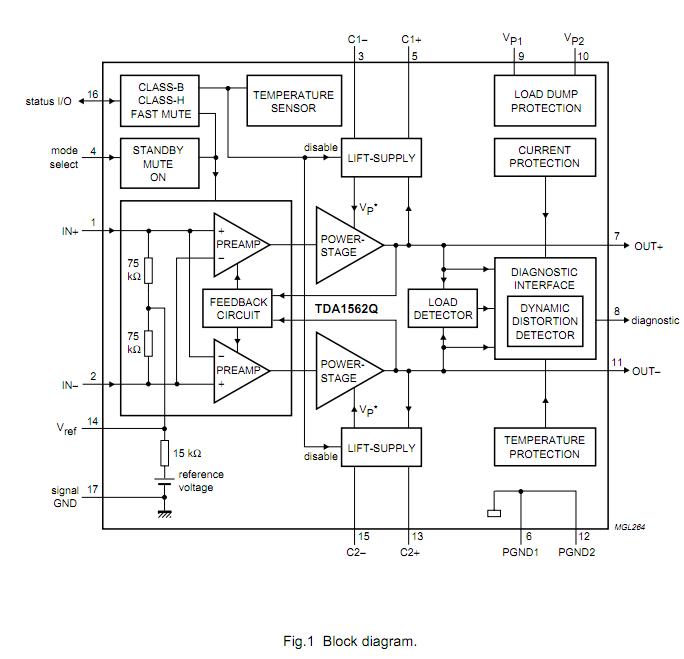

The TDA1562Q is a monolithic integrated 70 W/4Ω Bridge-Tied Load (BTL) class-H high efficiency power amplifier in a 17-lead DIL-bent-SIL plastic power package. The TDA1562Q can be used for car audio systems (e.g. car, radio and boosters) as well as mains fed applications (e.g. midi/mini audio combinations and TV sound).

Parametrics

TDA1562Q absolute maximum ratings: (1)VP supply voltage operating: 18 V; (2)IOSM non-repetitive peak output current: 10 A; (3)repetitive peak output current: 8A; (4)Vsc short-circuit safe voltage: 18 V; (5)Tstg storage temperature: -55 to +150℃; (6)Tamb ambient temperature: -40℃; (7)Tj junction temperature: 150℃; (8)Ptot total power dissipation: 60 W.

Features

TDA1562Q features: (1)Very high output power, operating from a single low supply voltage; (2)Low power dissipation, when used for music signals; (3)Switches to low output power at too high case temperatures; (4)Few external components; (5)Fixed gain; (6)Differential inputs with high common mode rejection; (7)Mode select pin (on, mute and standby); (8)Status I/O pin (class-H, class-B and fast mute); (9)All switching levels with hysteresis; (10)Fast mute on supply voltage drops; (11)Quick start option (e.g. car-telephony/navigation); (12)Low (delta) offset voltage at the outputs; (13)Load dump protection; (14)Short-circuit safe to ground, supply voltage and across the load; (15)Low power dissipation in any short-circuit condition; (16)Protected against electrostatic discharge; (17)Thermally protected; (18)Flexible leads.
