Product Summary
The SST55VD020-60-C-TQWE is a high-performance, flash media-based data storage system. The NAND Controller recognizes the control, address, and data signals on the ATA/IDE bus and translates them into memory accesses for standard NAND-type flash media. Utilizing both Single-Level Cell (SLC) and Multi-Level Cell (MLC) flash media, this technology supports solid state mass storage applications by offering new, expanded functionality while enabling smaller, lighter designs with lower power consumption.
Parametrics
SST55VD020-60-C-TQWE absolute maximum ratings: (1)Temperature Under Bias: -55 to +125℃; (2)Storage Temperature: -65 to +150℃; (3)D.C. Voltage on Pins1 I3, I4, O4, and O5 to Ground Potential: -0.5V to VDD+0.5V; (4)Transient Voltage (<20 ns) on Pins1 I3, I4, O4, and O5 to Ground Potential: -2.0V to VDD+2.0V; (5)D.C. Voltage on Pins1 I1, I2, O1, O2, and O6 to Ground Potential: -0.5V to VDDQ+0.5V; (6)Transient Voltage (<20 ns) on Pins1 I1, I2, O1, O2, and O6 to Ground Potential: -2.0V to VDDQ+2.0V; (7)Package Power Dissipation Capability (TA = 25℃): 1.0W; (8)Through Hole Lead Soldering Temperature (10 Seconds): 300℃; (9)Surface Mount Solder Reflow Temperature: 260℃ for 10 seconds; (10)Output Short Circuit Current: 50 mA.
Features
SST55VD020-60-C-TQWE features: (1)Industry Standard ATA/IDE Bus Interface; (2)Interface for Standard NAND Flash Media; (3)3.0V Power Supply; (4)5.0V or 3.0V Host Interface Through VDDQ Pins; (5)Low Current Operation; (6)Power Management Unit; (7)Write Protection; (8)20-byte Unique ID for Enhanced Security; (9)Programmable, Multitasking NAND Interface.

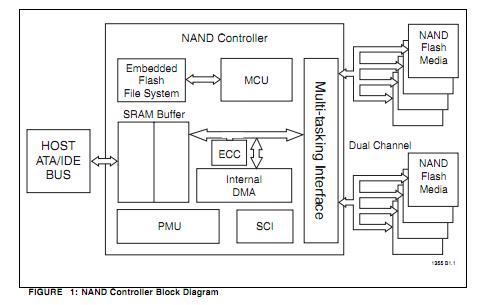

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 SST55VD020-60-C-TQWE |
Greenliant |
Flash ATA Media 60MHz 2.7V Commercial |
Data Sheet |
Negotiable |
|
||||
