Product Summary

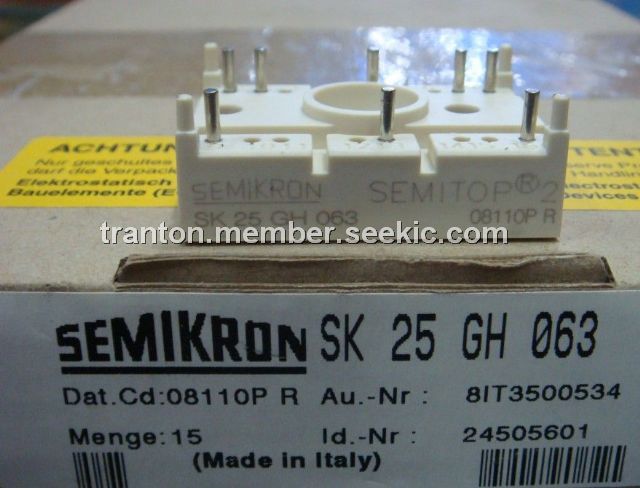

The SK25GH063 is an IGBT module. The typical applications are switching, inverter, switched mode power supplies and UPS.
Parametrics
SK25GH063 absolute maximum ratings: (1)VCES: 600V; (2)VGES: ±20V; (3)IC: 30A; (4)ICM: 60A; (5)Tj: -40 to 150℃.
Features
SK25GH063 features: (1)compact design; (2)one screw mounting; (3)heat transfer and isolation through direct copper bonded aluminium oxide ceramic; (4)N channel homogeneous silicon structure; (5)high short circuit capability; (6)low tail current with low temperature dependence; (7)UL recognized file no E63532.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 SK25GH063 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
