Product Summary

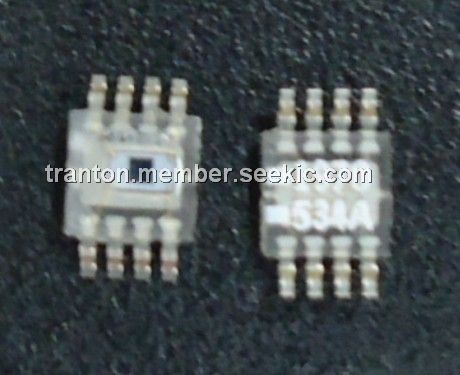

The LX1970IDU-TR is a new technology light sensor with spectral response that emulates the human eye. This device is ideal for monitoring ambient light for brightness control systems in flat panel displays. The LX1970IDU-TR has a unique photo diode arrangement (patents pending) with a peak response at 520 nm while sharply attenuating both ultra violet and infrared wavelengths.

Parametrics

LX1970IDU-TR absolute maximum ratings: (1)VDD: -0.3 to 6 VDC; (2)SNK/SRC (Output Compliance Voltage): -0.3 to VDD + 0.3VDC; (3)SNK/SRC (Maximum Output Current): Internally Limited; (4)Operating Temperature Range: -40 to +85℃; (5)Storage Temperature Range: -40 to +100℃; (6)Solder Reflow Peak Temperature (40 seconds maximum exposure): 260℃ (+0, -5).

Features

LX1970IDU-TR features: (1)Approximate Human Eye Spectral Response; (2)Low IR Sensitivity; (3)Highly Accurate & Repeatable Output Current vs. Light; (4)Voltage Scalable; (5)Temperature Stable; (6)Integrated High Gain Photo Current Amplifiers; (7)Complementary Current Outputs; (8)No Optical Filters Needed.

Diagrams

LX1970IDU-TR block diagram
